Inline densimeter and refractometer calibrator

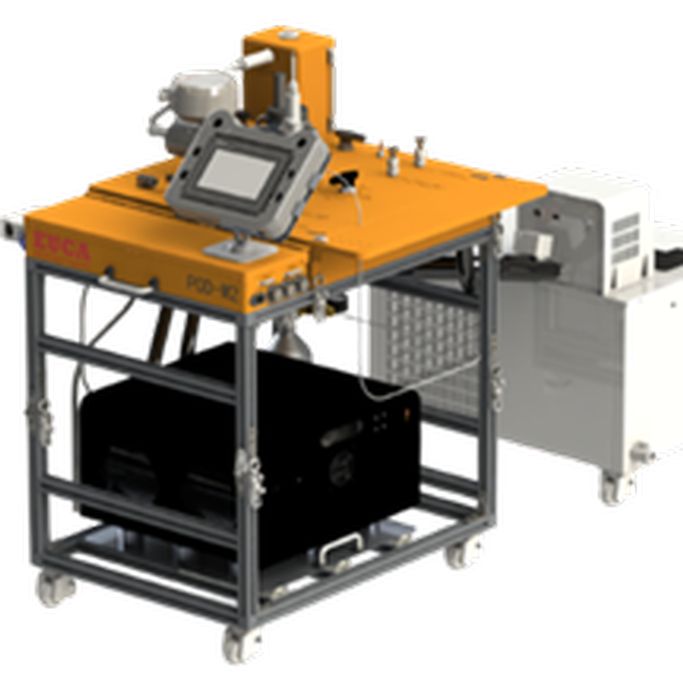

The POD-M2 is designed to calibrate or verify the inline densimeter while ensuring appropriate operational conditions.

The calibration fluid is circulated at specified velocity in a calibration module whose temperature is strictly stabilized to ensure accurate measurements. The sensing area of the densimeters are fully immersed in the fluid. Due to a unique design, the calibration fluid has no bubbles.

The POD-M2 has a laboratory version and a portable version. The portable version can be used both in laboratory and on site calibration.

KEY FEATURES

• Densimeters can be calibrated at specified temperature
• Calibration fluid circulated to simulate the real working condition of the sensors
• Automatic calculation of the measuring result
• Fluid can be pressurized up to 5 MPa

SPECIFICATIONS

• Temperature: +15 to +80°C, optional extended temperature availabe
• Stability: ± 0.01 K
• Fluid velocity: 1 to 1.5 m/s
• Fluid pressure: up to 5 MPa
