Rotational viscometer calibrator

The RVC complies with ASTM E2975 and ISO 2555 for the calibration of rotational viscometers which are used in a broad range of industries including food, pharmaceuticals, cosmetics, paints, and lubricants.

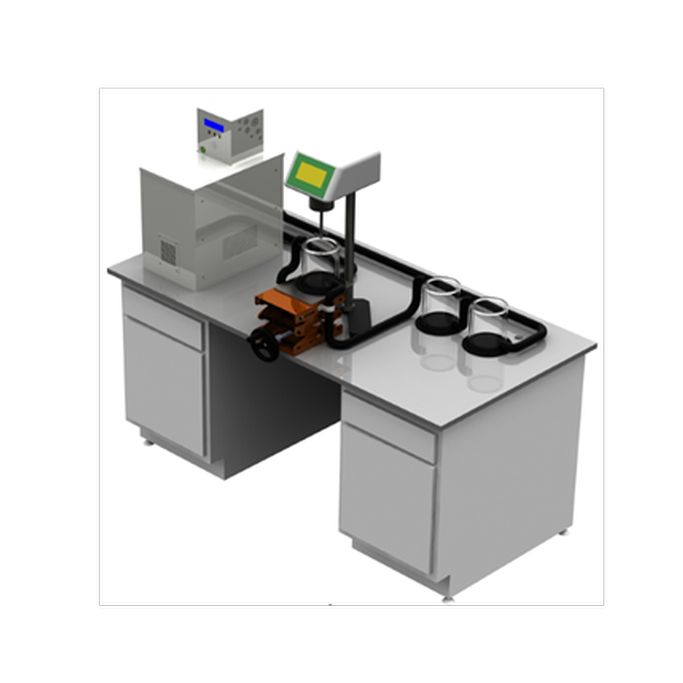

The RVC consists of several transparent circulating cups whose inner containers are in constant temperature controlled by a thermostat. The transparent circulating cups and thermostat are connected by pipelines protected by thermal isolation foams to reduce the thermos loss. The spindles of viscometers to be calibrated can be easily immersed in the viscosity reference material in the inner containers of the cups.

Key Features

• User friendly, easy to operate
• Stable temperature control to ±0.1°C
• Lifting platform for the transparent circulating cups

Specifications

• Temperature: +20 to +90°C
• Stability: ± 0.05 K
• Optional lifting platform for the viscometers
